Three-Phase Output Filter

This product has been discontinued and removed from our shelves.

Product Profile

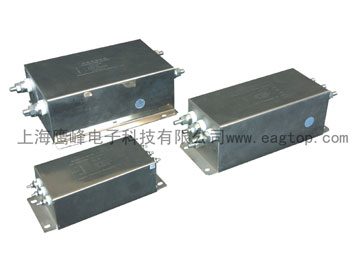

Installed at the output terminal of the transducer, this three-phase output filter has superior interference rejection capability and it can effectively reduce the electromagnetic interference produced by the transducer.

Features
Rated Voltage: 440/250V AC
Testing Voltage (1 minute): Line to Line 1500 V DC
Line to Ground 1500V AC/2500V DC
Operating frequency: 50/60 Hz
Range Of Temperature: -25-85℃
Insulation Resistance: Line to ground (up to 300A) ≥ 1500MΩ

Typical Insertion Attenuation: (Tested in a 50Ω system)

Type	Rated Current (A)	Methods of Head Joint	Connection Mode	Leakage Current
NFO-005	5	√		＜2
NFO-010	10	√		＜2
NFO-020	20	√		＜2
NFO-036	36	√		＜2
NFO-050	50	√		＜3
NFO-065	65	√		＜3
NFO-080	80	√		＜3
NFO-100	100	√		＜6
NFO-150	150	√		＜6
NFO-200	200	√		＜35
NFO-250	250		√	＜35
NFO-300	300		√	＜35
NFO-400	400		√	＜35
NFO-600	600		√	＜35
NFO-900	900		√	＜35
NFO-1200	1200		√	＜35

Note: In usage, please make sure that the product is connected to the ground for the sake of safety.

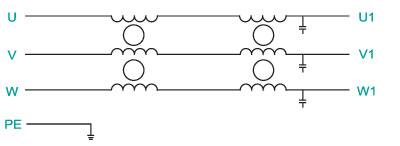

Electrical Schematic Diagrams
