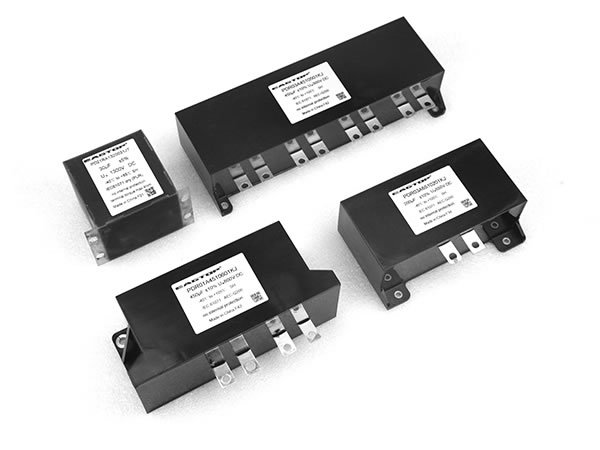

Film Capacitor

Product Profile
The film capacitor uses the organic film as the insulating medium. Besides, a metal layer made by evaporation on the surface of the organic film is used as the electrode. This power capacitor is made by winding the insulating medium and the electrode in pairs. It is characterized by the advantages of reliable capacity, low self-inductance and wide range of operating temperature (-40 - -85℃), etc.

This device is suitable for converter featured with usage in harsh service condition, low sensitive quality, long service life and demanding performance.

1. Electrodes (metallization)
2. Dielectric Medium (plastic film)
3. Winding-type Capacitor

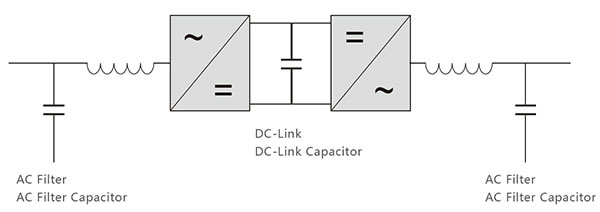

Electric Diagram
