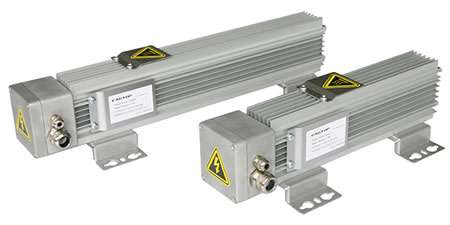

RHPA series resistors whose protection grade can reach up to IP55 are designed with good dissipation and neat appearance, applicable to environmentally demanding conditions.

Product Features
1. Rated power range: 300W~2000W
2. Operating voltage range: < 690V
3. Rated resistance range: 1Ω~10KΩ
4. Lower temperature rise due to heat sinking case
5. Inbuilt temperature control switch
6. Die-casting aluminum connection box, IP rating: more than IP54

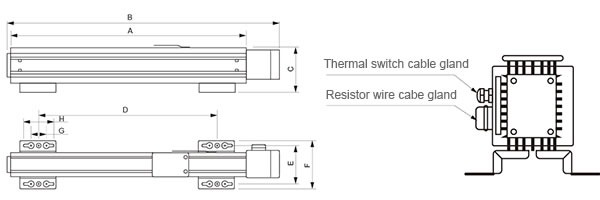

Product Size
Specifications

Type	Rated power(W)	Product picture	Dimensions (mm)								Resistance range(Ω)
			A	B	C	D	E	F	G	H
RHPA	300	Picture A	295	366	115	195	105	127	30	49.5	1Ω-10kΩ
RHPA	500		295	366	115	195	105	127	30	49.5	1Ω-10kΩ
RHPA	800		380	451	115	280	105	127	30	49.5	1Ω-10kΩ
RHPA	1000		426	497	115	326	105	127	30	49.5	5Ω-10kΩ
RHPA	1200		526	597	115	426	105	127	30	49.5	5Ω-10kΩ
RHPA	1500		626	697	115	526	105	127	30	49.5	5Ω-10kΩ
RHPA	1800		726	797	115	626	105	127	30	49.5	5Ω-10kΩ
RHPA	2000		726	797	115	626	105	127	30	49.5	5Ω-10kΩ

(For other technical parameters & requirments, please concact our company's salespeople)

Product Parameters

Type	Rated power(W)	Max. temperature rise (K @40°C )	Braking Power				Time constant	Resistance range(Ω)
			P 1/120 kW@40°C	P 5/120 kW@40°C	P 10/120 kW@40°C	P 40/120 kW@40°C
RHPA	300	300	9	3	1.5	0.9	1000	1Ω-10kΩ
RHPA	500	300	15	5	2.5	1.5	1000	1Ω-10kΩ
RHPA	800	380	30	10	5	3	1000	1Ω-10kΩ
RHPA	1000	400	36	12	6	3.6	1800	5Ω-10kΩ
RHPA	1200	450	45	15	7.5	4.5	1800	5Ω-10kΩ
RHPA	1500	450	54	18	9	5.4	1800	5Ω-10kΩ
RHPA	1800	450	60	20	10	6	1800	5Ω-10kΩ
RHPA	2000							5Ω-10kΩ

(For other technical parameters & requirments, please concact with our company’s business)

(Product Identification Code)

RHPA	0500	0032		9999G	J
Product Type	Rated Power 60W-500W 0020-20W 2K00-2KW	Resistance Value(ohm)	(Ω)indicates resistance value in units of ohms 0R08-0.08Ω/ 0032-32Ω/8K00-8KΩ	Connection G=Terminal	Resistance Tolerance H=±3% K=±10% J=±5%

RXLG.2K00.0032.9999G("9999G" is a common designation, indicating that the 2KW/32R resistor comes with aluminum enclosure.) RXLG.2K00.0032.6218A("6218A" is a customer code, meaning that this resistor is a customized product. )
