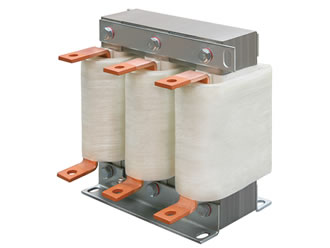

Output AC Reactor
Product Profile

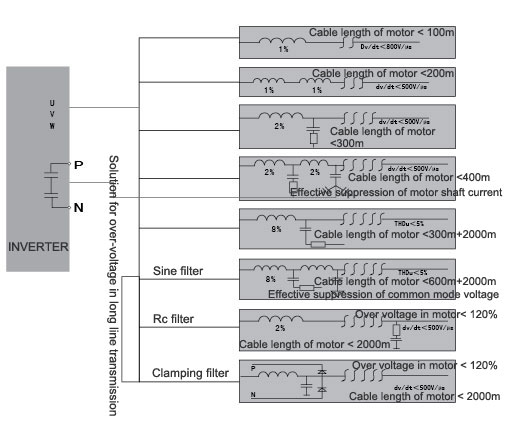

The output AC reactor is mainly used for the smoothing filtering. By reducing the transient voltage dv/dt, it extends the service-life of the electrical machine. This equipment is also applied to reduce the noise of the electrical machine, the eddy-current loss and the leak current caused by the output of the higher harmonic. Moreover, it is also employed to protect the power switching components inside the inverter.
Features
Based on different operating frequency, clients can reasonably choose the magnetic materials (such as silicon steel sheet, ferrite, amorphous iron core and magnetic powder core) as the raw material of this product.
The excellent performance of this equipment is due to the foil winding structure, low DC resistance, strong resistance to electromagnetic force and good overload ability in short time. F and above class composite insulating materials are used to ensure the reliable performance of the output AC reactor under harsh working conditions; The advantages of the design includes low magnetic flux density, high linearity and good overload capacity. Moreover, the cooperation of the design and the vacuum pressure impregnation process ensures the low noise of the product.
Product Size

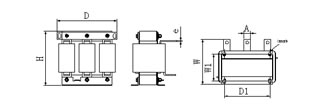

Picture A

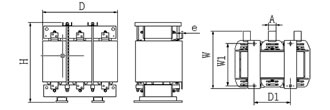

Picture B

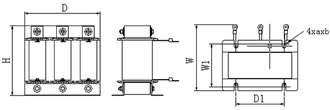

Picture C

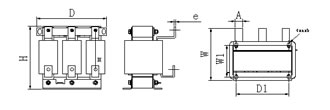

Picture D

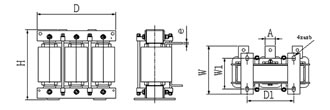

Picture E

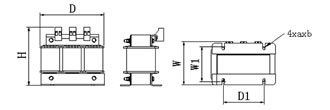

Picture F
| 380V Input Output AC Reactor Model Selection (1% Voltage Drop) | ||||||||||||||||
| No. | Power ( KVA ) | Rated current (A) | Inductance value (mH) | Voltage drop | Insulation class | Reactor type | Picture No. | Product Specifications | ||||||||
| D*H*W(mm) | D1*W1(mm) | a*b(mm) | ∮c(mm) | A*e (mm) | Material | Weight(Kg) | Qty. | Package code | ||||||||
| 1 | 1.5 | 5 | 1.4 | 1% | F | OCL-0005-EISC-E1M4C | A | 110*130*84 | 91*65 | 6*11 | / | / | Cu | 2.4 | 2 | A1 |
| 2 | 2.2 | 7 | 1 | 1% | F | OCL-0007-EISC-E1M 0C | 110*130*84 | 91*65 | 6*11 | / | / | Cu | 2.4 | 2 | A1 | |
| 3 | 3.7 | 10 | 0.7 | 1% | F | OCL-0010-EISC-EM70C | 110*130*84 | 91*65 | 6*11 | / | / | Cu | 2.4 | 2 | A1 | |
| 4 | 5.5 | 15 | 0.47 | 1% | F | OCL-0015-EISC-EM47C | 155*140*84 | 95*61 | 6*15 | / | / | Cu | 3 | 2 | C2 | |
| 5 | 7.5 | 20 | 0.35 | 1% | F | OCL-0020-EISC-EM35C | 155*140*84 | 95*61 | 6*15 | / | / | Cu | 3.8 | 2 | C2 | |
| 6 | 11 | 30 | 0.23 | 1% | F | OCL-0030-EISCL-EM23C | B | 200*130*116 | 120*72 | 8.5*20 | / | / | Cu | 4.6 | 2 | D5 |
| 7 | 15 | 40 | 0.18 | 1% | F | OCL-0040-EISCL-EM18 | 200*130*116 | 120*72 | 8.5*20 | / | / | Cu | 4.8 | 2 | D5 | |
| 8 | 18.5 | 50 | 0.14 | 1% | F | OCL-0050-EISCL-EM14C | 200*130*116 | 120*72 | 8.5*20 | / | / | Cu | 5 | 2 | D5 | |
| 9 | 22 | 60 | 0.12 | 1% | F | OCL-0060-EISCL-EM12C | 200*130*116 | 120*72 | 8.5*20 | / | / | Cu | 5.1 | 2 | D5 | |
| 10 | 30 | 80 | 0.087 | 1% | F | OCL-0080-EISC-E87U | 195*165*130 | 120*72 | 8.5*20 | / | / | Cu | 6 | 2 | D7 | |
| 11 | 37 | 90 | 0.078 | 1% | F | OCL-0090-EISC-E78U | 195*165*130 | 120*72 | 8.5*20 | / | / | Cu | 6 | 2 | D7 | |
| 12 | 45 | 120 | 0.058 | 1% | F | OCL-0120-EISC-E58UC | 195*165*165 | 150*88 | 8*15 | / | / | Cu | 9 | 2 | D7 | |
| 13 | 55 | 150 | 0.047 | 1% | F | OCL-0150-EISH-E47UC | C | 195*210*155 | 120*92 | 8.5*20 | 11 | 20*5 | AL | 10 | 1 | D7 |
| 14 | 75 | 200 | 0.035 | 1% | F | OCL-0200-EISH-E35UC | 195*210*165 | 120*102 | 8.5*20 | 11 | 20*5 | AL | 12 | 1 | D7 | |
| 15 | 110 | 250 | 0.028 | 1% | F | OCL-0250-EISH-E28UC | 195*210*165 | 120*102 | 8.5*20 | 11 | 20*5 | AL | 12 | 1 | D7 | |
| 16 | 132 | 290 | 0.024 | 1% | F | OCL-0290-EISH-E24UC | 255*240*175 | 182*91 | 11*18 | 12 | 30*5 | AL | 20 | 1 | F2 | |
| 17 | 330 | 330 | 0.021 | 1% | F | OCL-0330-EISH-E21UC | 255*240*175 | 182*91 | 11*18 | 12 | 30*5 | AL | 20 | 1 | F2 | |
| 18 | 185 | 390 | 0.018 | 1% | F | OCL-0390-EISH-E18UC | 255*245*175 | 182*91 | 11*18 | 12 | 30*5 | AL | 20 | 1 | F2 | |
| 19 | 490 | 490 | 0.014 | 1% | F | OCL-0490-EISH-E14UC | 300*295*190 | 214*95 | 11*18 | 14 | 40*8 | AL | 28 | 1 | G1 | |
| 20 | 250 | 530 | 0.013 | 1% | F | OCL-0530-EISH-E13UC | 300*295*190 | 214*95 | 11*18 | 14 | 40*8 | AL | 29 | 1 | G1 | |
| 21 | 280 | 600 | 0.012 | 1% | F | OCL-0600-EISH-E12UC | 300*295*210 | 214*110 | 11*18 | 14 | 40*8 | AL | 33 | 1 | G2 | |
| 22 | 660 | 660 | 0.011 | 1% | F | OCL-0660-EISH-E11UC | 300*315*210 | 214*110 | 11*18 | 14 | 40*8 | AL | 38 | 1 | G2 | |
| 23 | 450 | 1000 | 0.007 | 1% | F | OCL-1000-EISH-E7U0C | 325*350*215 | 243*112 | 12*20 | 2-∮13 | 60*8 | AL | 40 | 1 | I1 | |
| 24 | 550 | 1200 | 0.0058 | 1% | F | OCL-1200-EISH-E5U8C | 325*395*235 | 243*132 | 12*20 | 2-∮13 | 60*8 | AL | 56 | 1 | I2 | |
| 380V Input Output AC Reactor Model Selection (2% Voltage Drop) | ||||||||||||||||
| No. | Power ( KVA ) | Rated current (A) | Inductance value (mH) | Voltage drop | Insulation class | Reactor type | Picture No. | Product Specifications | ||||||||
| D*H*W(mm) | D1*W1(mm) | a*b(mm) | ∮c(mm) | A*e (mm) | Material | Weight(Kg) | Qty. | Package code | ||||||||
| 1 | 15 | 15 | 0.85 | 2% | F | OCL-0015-EISA-EM85 | A | 195*165*140 | 120*72 | 8.5*20 | / | / | AL | 6.5 | 2 | D5 |
| 2 | 22 | 25 | 0.51 | 2% | F | OCL-0025-EISA-EM51 | 195*165*140 | 120*72 | 8.5*20 | / | / | AL | 7 | 2 | D5 | |
| 3 | 37 | 35 | 0.36 | 2% | F | OCL-0035-EISA-EM36 | 195*150*155 | 120*85 | 8.5*20 | / | / | AL | 9.5 | 2 | D6 | |
| 4 | 45 | 55 | 0.23 | 2% | F | OCL-0055-EISA-EM23 | 195*185*175 | 120*107 | 8.5*20 | / | / | AL | 14 | 2 | D7 | |
| 5 | 55 | 70 | 0.182 | 2% | F | OCL-0070-EISA-EM18 | D | 250*200*175 | 182*79 | 11*18 | 11 | 25*5 | AL | 15 | 1 | E2 |
| 6 | 75 | 90 | 0.14 | 2% | F | OCL-0090-EISA-EM14 | 250*230*180 | 182*89 | 11*18 | 11 | 25*5 | AL | 18 | 1 | E3 | |
| 7 | 90 | 125 | 0.1 | 2% | F | OCL-0125-EISA-EM10 | 250*230*200 | 182*106 | 11*18 | 11 | 25*5 | AL | 23 | 1 | E3 | |
| 8 | 110/132 | 160 | 0.08 | 2% | F | OCL-0160-EISA-E80U | 290*250*190 | 214*100 | 11*18 | 11 | 25*5 | AL | 25 | 1 | G3 | |
| 9 | 160 | 200 | 0.064 | 2% | F | OCL-0200-EISA-E64U | 290*250*195 | 214*105 | 11*18 | 11 | 30*5 | AL | 28 | 1 | G3 | |
| 10 | 220 | 250 | 0.05 | 2% | F | OCL-0250-EISA-E50U | 290*250*215 | 214*125 | 11*18 | 11 | 30*5 | AL | 35 | 1 | G3 | |
| 11 | 250 | 300 | 0.042 | 2% | F | OCL-0300-EISA-E42U | 320*280*215 | 243*129 | 12*20 | 14 | 40*6 | AL | 37 | 1 | H3 | |
| 12 | 315/355 | 400 | 0.032 | 2% | F | OCL-0400-EISA-E32U | 320*280*235 | 243*144 | 12*20 | 14 | 40*6 | AL | 45 | 1 | H3 | |
| 13 | 450 | 500 | 0.025 | 2% | F | OCL-0500-EISA-E25U | 320*280*250 | 243*149 | 12*20 | 14 | 40*8 | AL | 46 | 1 | H3 | |
| 14 | 500/560 | 650 | 0.02 | 2% | F | OCL-0650-EISA-E20U | E | 395*355*270 | 225*150 | 15*25 | 14 | 50*10 | AL | 60 | 1 | J3 |
| 15 | 630/750 | 800 | 0.016 | 2% | F | OCL-0800-EISA-E16U | 395*355*295 | 225*175 | 15*25 | 14 | 50*10 | AL | 70 | 1 | J3 | |
| 16 | 800 | 950 | 0.013 | 2% | F | OCL-0950-EISA-E13U | F | 395*360*315 | 225*175 | 15*25 | 14 | 60*10 | AL | 75 | 1 | J3 |
| 17 | 900/1000 | 1200 | 0.01 | 2% | F | OCL-1200-EISA-E10U | 395*360*340 | 225*200 | 15*25 | 14 | 60*10 | AL | 85 | 1 | J3 | |
| 690V Input Output AC Reactor Model Selection (1% Voltage Drop) | ||||||||||||||||
| No. | Power ( KVA ) | Rated current (A) | Inductance value (mH) | Voltage drop | Insulation class | Reactor type | Picture No. | Product Specifications | ||||||||
| D*H*W(mm) | D1*W1(mm) | a*b(mm) | ∮c(mm) | A*e (mm) | Material | Weight(Kg) | Qty. | Package Code | ||||||||
| 1 | 15 | 15 | 0.85 | 1% | F | OCL-0015-EISA-EM85 | A | 195*165*140 | 120*72 | 8.5*20 | / | / | AL | 6.5 | 2 | D5 |
| 2 | 22 | 25 | 0.51 | 1% | F | OCL-0025-EISA-EM51 | 195*165*140 | 120*72 | 8.5*20 | / | / | AL | 7 | 2 | D5 | |
| 3 | 37 | 35 | 0.36 | 1% | F | OCL-0035-EISA-EM36 | 195*150*155 | 120*85 | 8.5*20 | / | / | AL | 9.5 | 2 | D7 | |
| 4 | 45 | 55 | 0.23 | 1% | F | OCL-0055-EISA-EM23 | 195*185*175 | 120*107 | 8.5*20 | / | / | AL | 14 | 2 | D8 | |
| 5 | 55 | 70 | 0.182 | 1% | F | OCL-0070-EISA-EM18 | D | 250*200*175 | 182*79 | 11*18 | 11 | 25*5 | AL | 15 | 1 | E2 |
| 6 | 75 | 90 | 0.14 | 1% | F | OCL-0090-EISA-EM14 | 250*230*180 | 182*89 | 11*18 | 11 | 25*5 | AL | 18 | 1 | E3 | |
| 7 | 90 | 125 | 0.1 | 1% | F | OCL-0125-EISA-EM10 | 250*230*200 | 182*106 | 11*18 | 11 | 25*5 | AL | 23 | 1 | E3 | |
| 8 | 110/132 | 160 | 0.08 | 1% | F | OCL-0160-EISA-E80U | 290*250*190 | 214*100 | 11*18 | 11 | 25*5 | AL | 25 | 1 | G3 | |
| 9 | 160 | 200 | 0.064 | 1% | F | OCL-0200-EISA-E64U | 290*250*195 | 214*105 | 11*18 | 11 | 30*5 | AL | 28 | 1 | G3 | |
| 10 | 220 | 250 | 0.05 | 1% | F | OCL-0250-EISA-E50U | 290*250*215 | 214*125 | 11*18 | 11 | 30*5 | AL | 35 | 1 | G3 | |
| 11 | 250 | 300 | 0.042 | 1% | F | OCL-0300-EISA-E42U | 320*280*215 | 243*129 | 12*20 | 14 | 40*6 | AL | 37 | 1 | H3 | |
| 12 | 315/355 | 400 | 0.032 | 1% | F | OCL-0400-EISA-E32U | 320*280*235 | 243*144 | 12*20 | 14 | 40*6 | AL | 45 | 1 | H3 | |
| 13 | 450 | 500 | 0.025 | 1% | F | OCL-0500-EISA-E25U | 320*280*250 | 243*149 | 12*20 | 14 | 40*8 | AL | 46 | 1 | H3 | |
| 14 | 500/560 | 650 | 0.02 | 1% | F | OCL-0650-EISA-E20U | E | 395*355*270 | 225*150 | 15*25 | 14 | 50*10 | AL | 60 | 1 | J3 |
| 15 | 630/750 | 800 | 0.016 | 1% | F | OCL-0800-EISA-E16U | 395*355*295 | 225*175 | 15*25 | 14 | 50*10 | AL | 70 | 1 | J3 | |
| 16 | 800 | 950 | 0.013 | 1% | F | OCL-0950-EISA-E13U | F | 395*360*315 | 225*175 | 15*25 | 14 | 60*10 | AL | 75 | 1 | J3 |
| 17 | 900/1000 | 1200 | 0.01 | 1% | F | OCL-1200-EISA-E10U | 395*360*340 | 225*200 | 15*25 | 14 | 60*10 | AL | 85 | 1 | J3 | |
| Code | D | W | H | Package Outline |
| A1 | 160 | 330 | 250 |   |
| A2 | 160 | 360 | 250 | |
| B1 | 180 | 330 | 250 | |
| B2 | 180 | 430 | 300 | |
| C1 | 220 | 330 | 260 | |
| C1 | 220 | 430 | 300 | |
| C2 | 220 | 500 | 320 | |
| D1 | 270 | 230 | 320 | |
| D2 | 270 | 270 | 350 | |
| D3 | 270 | 300 | 360 | |
| D4 | 270 | 360 | 300 | |
| D3 | 270 | 300 | 360 | |
| D5 | 270 | 360 | 440 | |
| D6 | 270 | 380 | 320 | |
| D7 | 270 | 430 | 320 | |
| D8 | 270 | 550 | 380 | |
| E1 | 300 | 230 | 320 | |
| E2 | 300 | 270 | 350 | |
| E3 | 300 | 300 | 380 | |
| E4 | 300 | 360 | 320 | |
| F1 | 330 | 270 | 340 | |
| F2 | 330 | 300 | 380 | |
| F3 | 330 | 330 | 400 | |
| G1 | 360 | 270 | 350 | |
| G2 | 360 | 300 | 380 | |
| G3 | 360 | 330 | 420 | |
| G4 | 360 | 360 | 440 | |
| H1 | 390 | 300 | 400 | |
| H2 | 390 | 330 | 400 | |
| H3 | 390 | 360 | 440 | |
| H4 | 390 | 430 | 500 | |
| H5 | 390 | 460 | 550 | |
| I1 | 420 | 300 | 380 | |
| I2 | 420 | 330 | 400 | |
| I3 | 420 | 430 | 550 | |
| I4 | 420 | 460 | 550 | |
| I5 | 420 | 500 | 610 | |
| J1 | 460 | 360 | 440 | |
| J2 | 460 | 380 | 460 | |
| J3 | 460 | 430 | 500 | |
| J4 | 460 | 480 | 550 | |
| K1 | 500 | 360 | 440 | |
| K2 | 500 | 430 | 500 | |
| K3 | 500 | 460 | 520 | |
| K4 | 500 | 500 | 600 | |
| K5 | 500 | 560 | 640 | |
| L1 | 600 | 430 | 500 | |
| L2 | 600 | 460 | 540 | |
| L3 | 600 | 500 | 540 | |
| L4 | 600 | 530 | 600 | |
| L5 | 600 | 560 | 640 | |
| L6 | 600 | 600 | 680 | |
| M1 | 630 | 560 | 620 | |
| M2 | 630 | 600 | 680 | |
| N1 | 680 | 500 | 580 | |
| N2 | 680 | 600 | 700 |
