Aluminum Enclosure Resistor

Aluminum Enclosure Resistor

Product Profile
The aluminum enclosure resistor in the RXLG series is superior to the traditional porcelain frame resistor in terms of weather fastness, vibration resistance and safety. It is widely applied in the return circuit of power supply, transducer and servo system and it has high adaptability to bad operating conditions. It can be easily fitted in an airtight manner and additional heat radiator can be fixed to it in an easy way. With elegant appearance, it is an ideal component that is perfectly compatible with power and electronic. Characterized by easy tight installation, easy attachment of radiator and aesthetic appearance, this aluminum enclosure resistor is ideal for the electrical and electronic products.

Product Size

Features
1. Rated power range: 60W-2000W
2. Operating voltage range: <1.2kV
3. Rated resistance value: 1R-10kR
4. Dielectric Strength: AC3KV 50Hz/5s
5. IP Grade: IP00/IP33
6. Vibration: 1.5g
7. Range of temperature excursion: ≤400ppm/℃
8. Material of the current carrier: 0Cr25AL5
9. Advantage: It can work in relatively nasty working environment
10. Disadvantage: relatively low operating voltage

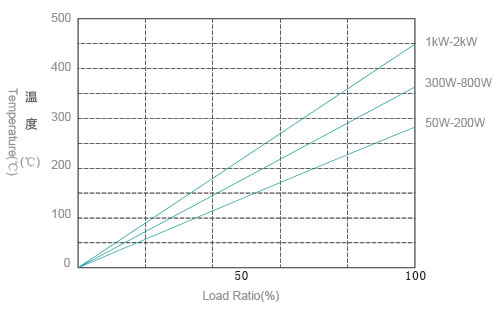

Surface Temperature Rise

Range of Application: GB/T5729-1994 Fixed Resistor Used in Electronic Equipment

Technical Parameters
Type Rated
Power (W) 		Product

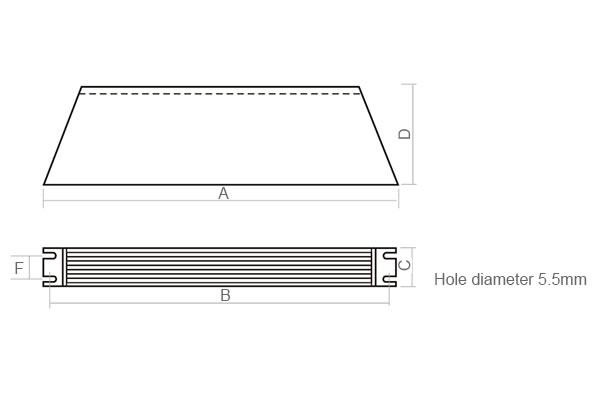

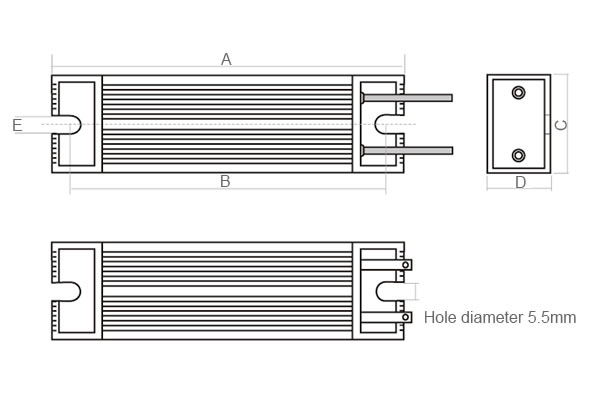

Picture 		Dimension (mm) Connecting
Wire (mm) 		Lead length
(mm) 		Terminal Weight (Kg) Resistance value
range(Ω) 		Connection
　 　 　 A B C D E F G 　 　 　 　 　 　
RXLG 60 Picture A 115 98 40 20 5.5 　 　 1.5 500 2-5S 0.165 1Ω-10KΩ Lead wire
RXLG 80 140 123 40 20 5.5 　 　 1.5 500 2-5S 0.2 1Ω-10KΩ
RXLG 100 165 148 40 20 5.5 　 　 1.5 500 2-5S 0.24 1Ω-10KΩ
RXLG 120 190 173 40 20 5.5 　 　 1.5 500 2-5S 0.28 1Ω-10KΩ
RXLG 150 215 198 40 20 5.5 　 　 1.5 500 2-5S 0.32 1Ω-10KΩ
RXLG 200 165 147 60 30 5.5 　 　 1.5 500 2-5S 0.464 1Ω-10KΩ
RXLG 300 215 198 60 30 5.5 　 　 1.5 500 2-5S 0.62 1Ω-10KΩ
RXLG 400 265 247 60 30 5.9 　 　 1.5 500 2-5S 0.8 1Ω-10KΩ
RXLG 500 335 317 60 30 5.9 　 　 1.5 500 2-5S 1.03 1Ω-10KΩ Terminal
RXLG 800 400 382 61 59 　 40.5 5.5 　 　 M6 2.2 1Ω-10KΩ
RXLG 1000 Picture B 400 384 50 107 　 30 5.5 　 　 M6 3.6 5Ω-10KΩ
RXLG 1200 450 434 50 107 　 30 5.5 　 　 M6 4 5Ω-10KΩ
RXLG 1500 485 469 50 107 　 30 5.5 　 　 M6 4.35 5Ω-10KΩ
RXLG 2000 550 534 50 107 　 30 5.5 　 　 M6 4.9 5Ω-10KΩ

If you have any demand for products in ROHS dimensions, please describe it in your order. (For the demand of other technical parameters, please contact us.)

Mechanical and Electrical Properties
Property Inspection method Performance Requirement Test Standard
Constant Damp-heat Temperature 40℃,Relative Humidity (90-95)% 96h R≤±(5%±0.05Ω) GB5729.2.24
Quick Change of Temperature -55℃ to +55℃,3 Circulations R≤±(2%±0.05Ω) GB5729.4.19
Transient Overload 10 Times Pr 5s No visible damage R≤±(1%±0.05Ω) GB5729.4.13
Insulation Resistance DC 1000V R≥100MΩ GB5729.4.6
Voltage Endurance AC3000V 50Hz 5s Free of puncture or flashover GB5729.4.7
Load Life 25℃ Ur 1000h R≤20% 　
Terminal Strength 45N 30S Free of visible damage GB5729.4.16
Vibration Resistance f:5-200HZ a=1g X.Y.Z every 2h R≤±(1%R+0.05Ω) Free of visible damage GB5729.4.22
Identification Code of the Finished Product
RXLG 2K00 0032 9999G J
Product Type Rated Power 50W-2000W
0020-20W
2K00-2KW 		Resistance Value(ohm) (Ω)indicates resistance value in
units of ohms 0R08-0.08Ω/
0032-32Ω/8K00-8KΩ 		Connection G=Terminal H= Lead Resistance Tolerance H=±3%
K=±10%
J=±5%

RXLG.2K00.0032.9999G("9999G" is a common designation, indicating that the 2KW/32R resistor comes with aluminum enclosure. RXLG.2K00.0032.6218A("6218A" is a customer code, meaning that this resistor is a customized product. )
