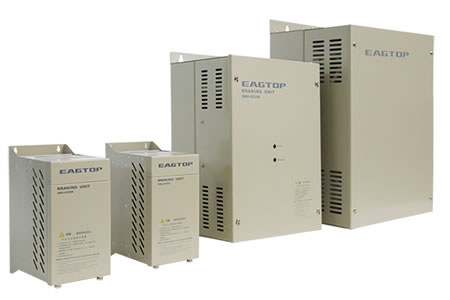

Braking Unit

Product Profile
The braking unit in the DBU series is applied to consume in the braking resistor the regenerative energy produced in the deceleration process of the motor in the form of heat energy. In this way, the braking performance of the transducer is improved and the braking time of the transducer is reduced.

Features
1. Safety: The tripping function of the equipment against IGBT short circuit and breakdown can effectively avoid the hidden danger of fire caused by the breakdown of IGBT and the overload operation of the resistor in a long time.
2. Wide Compatibility: The special design of this braking unit allows for the usage of common resistance rather than the non-inductive resistance. It can be adjusted to adapt to 600V-760V DC chopper wave voltage. Furthermore, this device is used in various types of medium and low voltage transducer. (Specially designed product reaches up to 1200V)
3. Economy: This facility is characterized by high performance cost ratio. With relatively economical price, its quality is same as that of similar imported products. It is therefore considered as the most economical and practical component product for the braking unit of the transducer.
4. A book-type design is employed in this braking unit which can be installed in a parallel connection with zero clearance. It is recommended that it can be connected in parallel with 3 units at most.

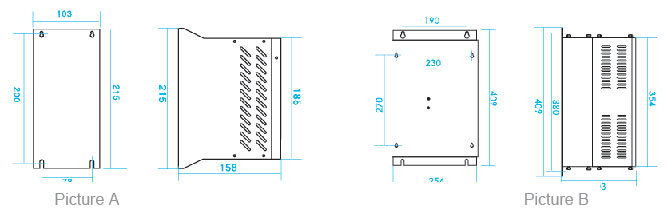

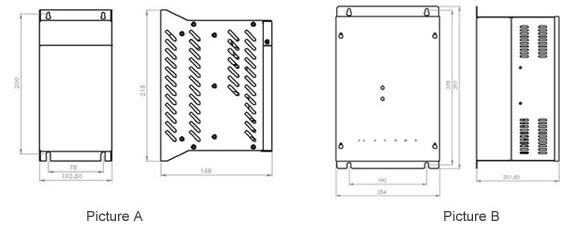

Product Size
Type Dimensional Drawing Rated braking current Max. braking current Chopper
voltage
Mounting
hole size
Terminal Weight
(kg)
Cable
(mm)
DBU-2015 A 15A 50A DC380V±5V Φ6 M4 2.3 4-6
DBU-2022C 25A 75A DC380V±5V Φ6 M4 2.3 4-6
DBU-2030C 30A 90A DC380V±5V Φ6 M4 2.3 4-6
DBU-4030D 15A 50A DC630/DC660/DC690V
DC730V/DC760V±10V
Φ6 M4 2.3 4-6
DBU-4045C 25A 75A DC630/DC660/DC690V
DC730V/DC760V±10V
Φ6 M4 2.3 4-6
DBU-4110B B 60A 200A DC630/DC660/DC690V
DC730V/DC760V±10V
Φ8 M8 13.2 16-36
DBU-4220B 85A 300A DC630/DC660/DC690V
DC730V/DC760V±10V
Φ8 M8 13.2 16-36
DBU-4300 120A 500A DC630/DC660/DC690V
DC730V/DC760V±10V
Φ8 M8 13.2 25-50
DBU-6220 85A 300A DC1000V/DC1050V/DC1100V
DC1150V/DC1200V±20V
Φ8 M8 13.2 16-36
DBU-11220   85A 300A DC1750V/DC1800V/DC1850V
DC1900V/DC1950V±40V
Φ8 M8 21 16-36
Identification Code of the Finish Product
ED = 10%, braking activation voltage = 760 VDC
Applicable to common machine and the elevator (less than 10 stories), crane trolley)
Inverter power (kw) DBU type Quantity of DBU Resistor Quantity of resistor Braking torque
0.4 DBU-4015 1 70W 750Ω 1 230
0.75 DBU-4015 1 70W 750Ω 1 130
1.5 DBU-4015 1 260W 400Ω 1 125
2.2 DBU-4015 1 260W 250Ω 1 135
3.7 DBU-4015 1 390W 150Ω 1 135
5.5 DBU-4015 1 520W 100Ω 1 135
7.5 DBU-4015 1 780W 75Ω 1 130
11 DBU-4015 1 1040W 50Ω 1 135
15 DBU-4015 1 1560W 40Ω 1 125
18.5 DBU-4030D 1 4800W 32Ω 1 125
22 DBU-4030D 1 4800W 27.2Ω 1 125
30 DBU-4030D 1 6000W 20Ω 1 125
37 DBU-4045C 1 9600W 16Ω 1 125
45 DBU-4045C 1 9600W 13.6Ω 1 125
55 DBU-4030D 2 6000W 20Ω 2 135
75 DBU-4045C 2 9600W 13.6Ω 2 145
110 DBU-4030D 3 9600W 20Ω 3 100
110 DBU-4110B 1 30kW 6.8Ω 1 100
160 DBU-4220B 1 40kW 3.4Ω 1 140
220 DBU-4220B 1 60kW 3.2Ω 1 110
300 DBU-4300 1 80kW 2.5Ω 1 110
600 DBU-4300 2 90kW 2.5Ω 2 130
ED = 20%, braking activation voltage = 760 VDC
Applies to medium mechanical equipment and elevator(less than 20 stories))
Inverter power DBU type Quantity of DBU Resistor Quantity of resistor Braking torque
0.4 DBU-4015 1 140W 750Ω 1 230
0.75 DBU-4015 1 140W 700Ω 1 145
1.5 DBU-4015 1 520W 350Ω 1 150
2.2 DBU-4015 1 520W 230Ω 1 155
3.7 DBU-4015 1 780W 140Ω 1 150
5.5 DBU-4015 1 1040W 90Ω 1 155
7.5 DBU-4015 1 1560W 70Ω 1 145
11 DBU-4015 1 2kW 47Ω 1 150
15 DBU-4030D 1 3kW 34Ω 1 150
18.5 DBU-4030D 1 9600W 28Ω 1 150
22 DBU-4030D 1 9600W 24Ω 1 145
30 DBU-4045C 1 12kW 17Ω 1 150
37 DBU-4045C 1 20kW 16Ω 1 125
45 DBU-4030D 2 10kW 24Ω 2 145
55 DBU-4045C 2 12kW 18Ω 2 155
75 DBU-4045C 2 18kW 13.6Ω 2 150
110 DBU-4045C 3 15kW 16Ω 3 145
160 DBU-4220B 1 80kW 3.2Ω 1 150
220 DBU-4300 1 110kW 2.5Ω 1 150
300 DBU-4220B 2 80kW 3.5Ω 2 150
600 DBU-4300 3 100kW 2.6Ω 3 150
ED = 40%, braking act ivation volt age = 760 VDC
Applies to elevators(over 30 storeys), main hook of the light crane)
Inverter power DBU type Quantity of DBU Resistor Quantity of resistor Braking torque
0.4 DBU-4015 1 240W 750Ω 1 230
0.75 DBU-4015 1 450W 550Ω 1 190
1.5 DBU-4015 1 800W 275Ω 1 190
2.2 DBU-4015 1 1.3kW 180Ω 1 135
3.7 DBU-4015 1 2.2kW 110Ω 1 190
5.5 DBU-4015 1 3.3kW 75Ω 1 190
7.5 DBU-4015 1 4.5kW 55Ω 1 190
11 DBU-4030D 1 6.6kW 37Ω 1 190
15 DBU-4030D 1 9kW 27Ω 1 190
18.5 DBU-4045C 1 11kW 22Ω 1 190
22 DBU-4045C 1 13kW 18Ω 1 190
30 DBU-4030D 2 10kW 27Ω 2 190
37 DBU-4045C 2 11kW 22Ω 2 190
45 DBU-4045C 2 13.5kW 18Ω 2 190
55 DBU-4045C 3 12kW 22Ω 3 190
75 DBU-4045C 4 11kW 22Ω 4 190
110 DBU-4220B 1 66kW 3.7Ω 1 190
160 DBU-4220B 2 48kW 5Ω 2 190
220 DBU-4220B 2 66kW 3.7Ω 2 190
300 DBU-4300 2 90kW 2.7Ω 2 190
600 DBU-4300 4 90kW 2.7Ω 4 190

Note: Because cranes used and sis in a state of high frequency use, its configuration is matched according to ED=60%~80%, for specipic configurations, contact our company please.
