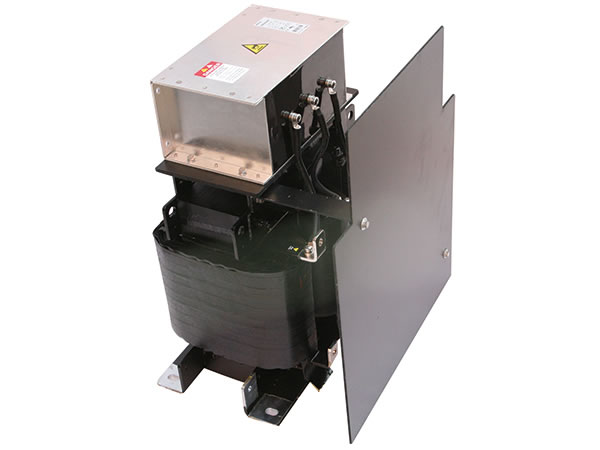

Sine Wave Filter

Sine Wave Filter

Product Profile
Due to the excellent foil winding structure and aluminum leading structure, the sine-wave filter is characterized by small DC resistance, strong ability to resist electromagnetic force and strong short-time overload capability. Class F insulation materials give the filter reliable performance even in harsh operating conditions; high insulation ability can maintain high Dv/dt voltage impulse to the reactor; VPI process makes the humming noise low.

Features
Due to the excellent foil winding structure and aluminum leading structure, the sine-wave filter is characterized by small DC resistance, strong ability to resist electromagnetic force and strong short-time overload capability. Class F insulation materials give the filter reliable performance even in harsh operating conditions; high insulation ability can maintain high Dv/dt voltage impulse to the reactor; VPI process makes the humming noise low.

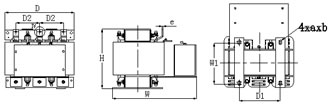

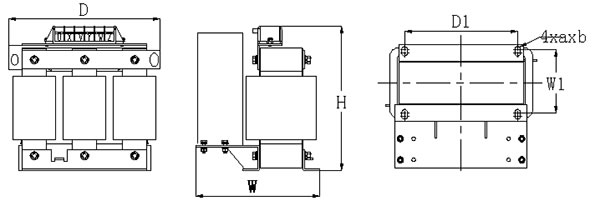

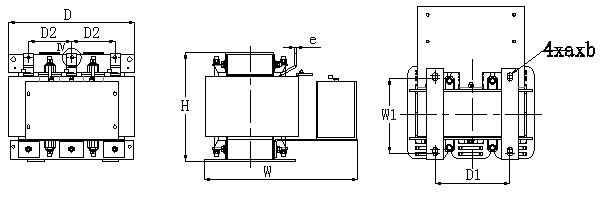

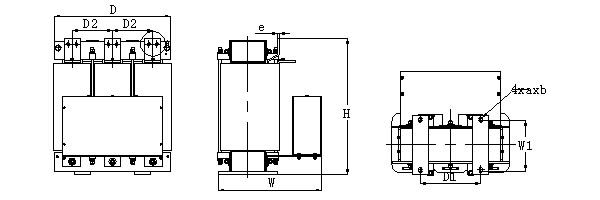

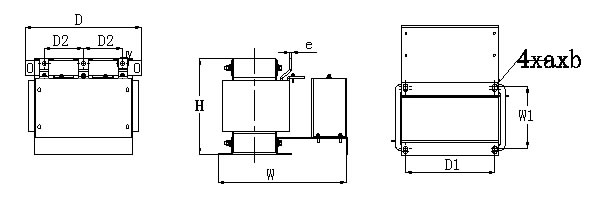

Dimensional Drawings
  • Picture H
  • Picture I
  • Picture J
  • Picture K
380V Output Sine-Wave Filter Table
No. Power(KVA) Rated Current (A) Inductance Value(mH) Capacitance (kvar) Insulation Class Reactor Type Picture No. Product Specifications
D×H×W (mm) D1×W1(mm) a×b(mm) ∮c(mm) A×e (mm) Material Weight (Kg) Qty. Package Code
1 5.5 15 4.00 5.5 H OSF-0015-EISA-E4M0 H 250×270×200 182×91 11×18 6.4 / AL 18 1 G5
2 7.5 20 3.00 7.5 H OSF-0020-EISA-E3M0 250×280×220 182×100 11×18 6.4 / AL 22 1 G6
3 11 30 2.00 11 H OSF-0030-EISA-E2M0 250×280×240 182×106 11×18 6.4 / AL 22 1 G5
4 15 40 1.40 15 H OSF-0040-EISA-E1M4 250×280×240 182×121 11×18 6.4 / AL 26 1 G5
5 18.5 50 1.20 18.5 H OSF-0050-EISA-E1M2 290×290×250 214×110 11×18 6.4 / AL 26 1 G5
6 22 60 1.00 22 H OSF-0060-EISA-E1M0 290×290×250 214×120 11×18 6.4 / AL 31 1 G5
7 30 80 0.80 30 H OSF-0080-EISA-EM80 320×320×270 243×142 12×20 6.4 / AL 45 1 I3
8 37 90 0.65 37 H OSF-0090-EISA-EM65 I 320×280×340 243×159 12×20 11 25×5 AL 60 1 H3
9 45 120 0.52 45 H OSF-0120-EISA-EM52 320×280×355 243×169 12×20 11 25×5 AL 60 1 H3
10 55 150 0.45 55 H OSF-0150-EISA-EM45 J 390×360×390 225×175 15×25 11 25×5 AL 90 1 J3
11 75 200 0.35 75 H OSF-0200-EISA-EM35 400×355×435 225×200 15×25 11 30×5 AL 95 1 K2
12 110 250 0.30 110 H OSF-0250-EISA-EM30 400×340×470 225×225 15×25 11 30×5 AL 115 1 K2
13 185 450 0.15 185 H OSF-0450-EISA-EM15 430×470×470 250×250 15×25 14 40×5 AL 170 1 K5
14 220 500 0.15 220 H OSF-0500-EISA-EM15 455×470×480 270×250 15×25 14 50×5 AL 190 1 L5
15 280 600 0.12 280 H OSF-0600-EISA-EM12 480×535×480 275×250 15×25 14 50×5 AL 250 1 L6
16 315 660 0.10 315 H OSF-0660-EISA-EM10 475×530×510 300×250 15×25 14 50×5 AL 255 1 L6
17 355 750 0.09 355 H OSF-0750-EISA-EM09 K 550×570×515 275×250 15×25 14 50×10 AL 290 1 N2
18 400 900 0.08 400 H OSF-0900-EISA-E75U 550×620×530 275×250 15×25 2- ∮13 60×10 AL 330 1 N3
19 450 1000 0.06 450 H OSF-1000-EISA-E60U 550×595×530 275×250 15×25 2- ∮13 60×10 AL 300 1 N3
20 500 1200 0.07 500 H OSF-1200-EISA-E65U 600×680×530 300×250 15×25 2- ∮13 80×8 AL 390 1 N4
Package Code
Code D W H Package Pic.
A1 160 330 250
A2 160 360 250
B1 180 330 250
B2 180 430 300
C1 220 330 260
C1 220 430 300
C2 220 500 320
D1 270 230 320
D2 270 270 350
D3 270 300 360
D4 270 360 300
D3 270 300 360
D5 270 360 440
D6 270 380 320
D7 270 430 320
D8 270 550 380
E1 300 230 320
E2 300 270 350
E3 300 300 380
E4 300 360 320
F1 330 270 340
F2 330 300 380
F3 330 330 400
G1 360 270 350
G2 360 300 380
G3 360 330 420
G4 360 360 440
H1 390 300 400
H2 390 330 400
H3 390 360 440
H4 390 430 500
H5 390 460 550
I1 420 300 380
I2 420 330 400
I3 420 430 550
I4 420 460 550
I5 420 500 610
J1 460 360 440
J2 460 380 460
J3 460 430 500
J4 460 480 550
K1 500 360 440
K2 500 430 500
K3 500 460 520
K4 500 500 600
K5 500 560 640
L1 600 430 500
L2 600 460 540
L3 600 500 540
L4 600 530 600
L5 600 560 640
L6 600 600 680
M1 630 560 620
M2 630 600 680
N1 680 500 580
N2 680 600 700
