Output AC Reactor

This product has been discontinued and removed from our shelves.

Functions of Output AC Reactor
1. Decrease the motor noise and the eddy-current losses
2. Decrease the leakage current caused by high ultra harmonics
3. Reduce transient voltage dv/dt and increase the serving time
4. Protect the power switch components of inverter

Features of Output AC Reactor
1. According to customers' using frequency, different magnetic materials could be chosen from silicon-steel plate, ferrite, noncrystalline core, magnetic powder core.
2. Our output AC reactor employs high-performance foil winding structure. It owns properties include: low DC resistance, high anti-electromagnetic performance, large short-term overload capacity.
3. It adopts high-performance composite insulation material (above F) and could maintain reliable performance in harsh working conditions.
4. Low magnetic flux intensity, superior linearity, large overload capacity, and low noise with vacuum pressure impregnation.

Parameters of Output AC Reactor
1. Rated Voltage: 380V/50Hz or 660V/50Hz
2. Rated operating current: 5A to 1600A@40℃
3. Reactive Strength: Core-Winding 3000VAC/50Hz/5mA/10S Free of arcing breakage (tested in factory)
4. Insulation Resistance: 1000VDC, insulation resistance≥100MΩ
5. The noise of reactor is less than 65dB (measured at the point 1 meter away from the reactor horizontally)
6. Protection class: IP00
7. Insulation class: Above F
8. Standard: IEC289: 1987 Reactor
GB10229-88 Reactor (equivalent to IEC289:1987)
JB9644-1999 Reactor for semi-conductor transmission

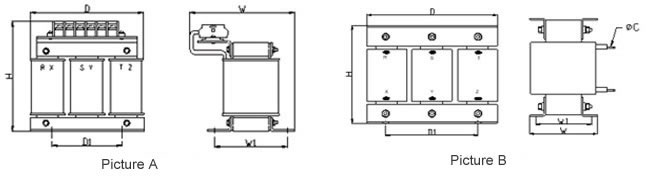

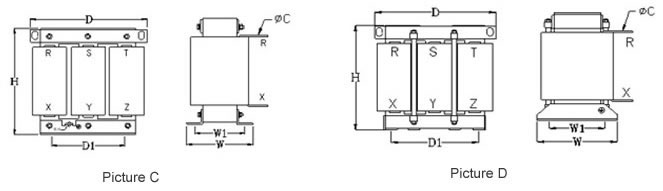

Model	Picture	Power (kw)	Inductance (mH)	Dimensions (mm)
				D	D1	W	W1	H	A*B	C
OCL-0005-EISC-E1M4	A	1.5	1.4	110	91	84	65	130	6*11	/
OCL-0007-EISC-E1M0		2.2	1	110	91	84	65	130	6*11	/
OCL-0010-EISC-EM70		3.7	0.7	110	91	84	65	130	6*11	/
OCL-0015-EISC-EM47	B	5.5	0.47	155	95	76	61	130	6*15	/
OCL-0020-EISC-EM35		7.5	0.35	155	95	76	61	130	6*15	/
OCL-0030-EISC-EM23		11	0.23	155	95	96	81	150	6*15	/
OCL-0040-EISC-EM18		15	0.18	155	95	96	81	150	6*15	/
OCL-0050-EISC-EM14		18.5	0.14	155	95	96	81	150	6*15	/
OCL-0060-EISC-EM12		22	0.12	195	120	92	72	165	8.5*20	/
OCL-0080-EISC-E87U	C	30	0.087	195	120	92	72	165	8.5*20	φ9
OCL-0090-EISC-E78U		37	0.078	195	120	92	72	165	8.5*20	φ9
OCL-0120-EISC-E58U		45	0.058	195	120	112	92	165	8.5*20	φ9
OCL-0150-EISH-E47U		55	0.047	250	182	113	87	230	11*18	φ11
OCL-0200-EISH-E35U		75	0.035	250	182	123	97	230	11*18	φ11
OCL-0250-EISH-E28U		90	0.028	250	182	123	97	230	11*18	φ11
		110
OCL-0290-EISH-E24U		132	0.024	290	214	127	101	250	11*18	φ12
OCL-0330-EISH-E21U		160	0.021	290	214	132	106	275	11*18	φ12
OCL-0390-EISH-E18U		185	0.018	290	214	132	106	275	11*18	φ12
OCL-0490-EISH-E14U	D	220	0.014	320	243	143	113	320	12*20	2-φ12
OCL-0530-EISH-E13U		250	0.013	320	243	143	113	320	12*20	2-φ12
OCL-0600-EISH-E12U		280	0.012	320	243	158	128	320	12*20	2-φ12
OCL-0660-EISH-E11U		300	0.011	320	243	158	128	320	12*20	2-φ12
OCL-0800-EISH-E8U7		380	0.0087	385	260	395	175	395	12*20	2-φ12
OCL-1000-EISH-E7U0		450	0.007	385	260	395	175	395	12*20	4-φ12
OCL-1200-EISH-E5U8		550	0.0058	395	275	295	175	435	12*20	4-φ12
OCL-1600-EISH-E4U3		630	0.0043	395	275	295	175	435	12*20	4-φ12
