DC Reactor
DC Reactor
This product has been discontinued and removed from our shelves.
Benefits of DC Reactor
1. Modify abnormal input current waveform caused by capacitor filtering
2. Avoid damage to Rectifier Bridge and over temperature of capacitor caused by surge current.
3. Increase power factor and decrease AC pulse of DC Bus bar.
4. Restrict the instantaneous variation of electric network.
Features of DC Reactor
1. Highly heat-insulated composite material and unframed structure endow this DC reactor with superior heat resistance. F class and H class heat resistance classes are both available for your choice.
2. Our DC reactor is argon arc welded with low noise, low magnetic leakage and stable inductance.
3. Loops are wound with strong electromagnetic resistance and neat appearance.
4. It employs low-lost cold rolled silicone steel sheet, which is of high reliability and low weight.
Parameters of DC Reactor
1. Rated Voltage: DC500~1000V
2. Rated operating current: 3A to 1500A@40℃
3. Reactive Strength: Core- Winding 3000VAC/50Hz/10mA/10S Free of arcing breakage (tested in factory)
4. Insulation Resistance: 1000VDC, insulation resistance≥100MΩ
5. Reactor's noise is less than 65dB(to be measured at the point 1 meter away from the reactor horizontally)
6. Protection class: IP00
7. Insulation class: Above F
8. Standard: IEC289: 1987 Reactor
GB10229-88 Reactor (equivalent to IEC289:1987)
JB9644-1999 Reactor for semi-conductor transmission

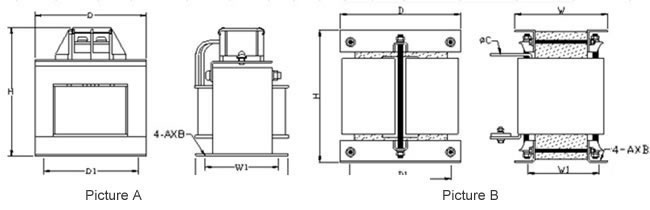

| Model | Picture | Adaptation Power (kw) | Rated Current (A) | Inductance (mH) |
Weight (kg) |
External
Dimensions |
Installation Dimensions |
| L×W×H | L×W | ||||||
| DCL-0003-EIDC-E28M | A | 0.4 | 3A | 28mH | 1.5 | 80*65*110 | 63*47 |
| DCL-0003-EIDC-E28M | 0.75 | 3A | 28mH | 1.5 | |||
| DCL-0006-EIDC-E11M | 1.5 | 6A | 11mH | 2.3 | 80*85*110 | 63*60 | |
| DCL-0006-EIDC-E11M | 2.2 | 6A | 11mH | 2.3 | |||
| DCL-0012-EIDC-E6M3 | 3.7 | 12A | 6.3mH | 3.2 | 100*100*125 | 80*70 | |
| DCL-0012-EIDC-E6M3 | 4 | 12A | 6.3mH | 3.2 | |||
| DCL-0023-EIDH-E3M6 | 5.5 | 23A | 3.6mH | 3.8 | 110*120*135 | 87*70 | |
| DCL-0023-EIDH-E3M6 | 7.5 | 23A | 3.6mH | 3.8 | |||
| DCL-0033-EIDH-E2M0 | 11 | 33A | 2.0mH | 4.3 | |||
| DCL-0033-EIDH-E2M0 | 15 | 33A | 2.0mH | 4.3 | |||
| DCL-0040-EIDH-E1M3 | 18.5 | 40A | 1.3mH | 4.3 | |||
| DCL-0050-EIDH-E1M1 | 22 | 50A | 1.08mH | 5.5 | 120*135*145 | 95*85 | |
| DCL-0065-EIDH-EM80 | 30 | 65A | 0.8mH | 7.2 | 138*150*170 | 111*85 | |
| DCL-0078-EIDH-EM70 | 37 | 78A | 0.7mH | 7.5 | |||
| DCL-0095-EIDH-EM54 | 45 | 95A | 0.54mH | 7.8 | |||
| DCL-0115-EIDH-EM45 | 55 | 115A | 0.45mH | 9.2 | 155*160*195 | 125*90 | |
| DCL-0160-EIDH-EM36 | B | 75 | 160A | 0.36mH | 10 | 165*130*215 | 100*98 |
| DCL-0180-UIDH-EM33 | 90 | 180A | 0.33mH | 20 | |||
| DCL-0250-EIDH-EM26 | 110 | 250A | 0.26mH | 23 | 210*150*255 | 176*115 | |
| DCL-0250-UIDH-EM26 | 132 | 250A | 0.26mH | 23 | |||
| DCL-0340-UIDH-EM17 | 160 | 340A | 0.17mH | 23 | |||
| DCL-0460-EIDH-EM09 | 185 | 460A | 0.09mH | 28 | 220*150*280 | 191*115 | |
| DCL-0460-UIDH-EM09 | 220 | 460A | 0.09mH | 28 | |||
| DCL-0650-UIDH-E72U | 300 | 650A | 0.072mH | 33 | 235*160*280 | 206*125 |
