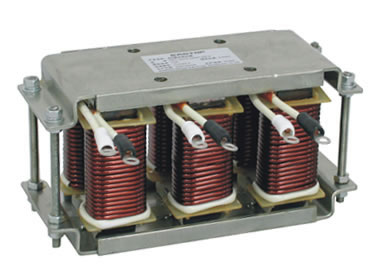

Energy Regenerated Reactor

This product has been discontinued and removed from our shelves.

Eagtop is a reactor supplier and manufacturer. Energy regenerated reactor produced by Eagtop could be used to filter out upper harmonics and clean the power network. We can also produce customized reactors for different working conditions upon request.

Features of Energy Regenerated Reactor
1. Our energy regenerated reactor adopts highly heat and pressure resistant level-200 polyimide lacquer wire. This lacquer wire is able to endure strong dv/dt impulse wave.
2. Korean magnetic powder core with low core spoilage, large overload capacity. This magnetic powder core is of small size and light weight.
3. Our energy regenerated reactor adopts non-gap structure, which enables little magnetic leakage and long-time stable inductance.
4. Zero for magnetostriction coefficient. This reactor produces less than 60dB of noise under 1-30 KHz working conditions. It is especially suitable for energy regenerated filtration of elevator.

Parameters of Energy Regenerated Reactor
1. Rated Voltage: 380V/50Hz or 660V/50Hz
2. Rated operating current: 5A to 1600A@40℃
3. Reactive Strength: Core- Winding 3000VAC/50Hz/5mA/10S Free of arcing breakage (tested in factory)
4. Insulation Resistance: 1000VDC, insulation resistance≥100MΩ
5. Reactor's noise is less than 65dB(to be measured at the point 1 meter away from the reactor horizontally)
6. Protection class: IP00
7. Insulation class: Above F
8. Standard: IEC289: 1987 Reactor
GB10229-88 Reactor (equivalent to IEC289:1987)
JB9644-1999 Reactor for semi-conductor transmission
