Output AC Reactor 2%

This product has been discontinued and removed from our shelves.

Functions of Output AC Reactor 2%
Our output AC reactor 2% could be applied to reduce the motor noise, eddy current losses, current leakage, transient voltage dv/dt. By protecting the power switch components of the inverter, it could also lengthen the lifetime of the motor.

Parameters of Output AC Reactor 2%
1. Rated Voltage: 380V/50Hz or 660V/50Hz
2. Rated operating current: 5A to 1600A@40℃
3. Reactive Strength: Core-Winding 3000VAC/50Hz/5mA/10S Free of arcing breakage (tested in factory)
4. Insulation Resistance: 1000VDC, insulation resistance≥100MΩ
5. The noise of reactor is less than 65dB (measured at the point 1 meter away from the reactor horizontally)
6. Protection class: IP00
7. Insulation class: Above F
8. Standard: IEC289: 1987 Reactor
GB10229-88 Reactor (equivalent to IEC289:1987)
JB9644-1999 Reactor for semi-conductor transmission

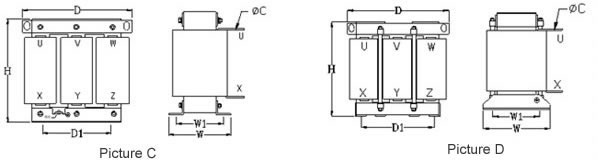

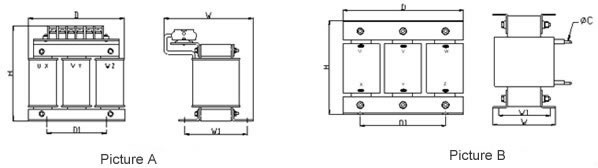

Model	Picture	Adaptation Power (kw)	Rated Current (A)	Inductance (mH)	Voltage Drop	Weight (kg)	Dimensions (±0.5mm)
							D	D1	W	W1	H	A*B	C
OCL-0005-EISC-E2M8	A	1.5	5A	2.8mH	2%	2.8	148	95	85	60	168	6*15	/
OCL-0007-EISC-E1M9		2.2	7A	1.86mH	2%	2.9	148	95	85	60	168	6*15	/
OCL-0010-EISC-E1M4		3.7	10A	1.4mH	2%	3.3	148	95	85	60	168	6*15	/
OCL-0015-EISC-EM93	B	5.5	15A	0.93mH	2%	5.9	188	120	100	75	156	8.5*20	φ6
OCL-0020-EISC-EM70		7.5	20A	0.7mH	2%	7	188	120	105	80	156	8.5*20	φ6
OCL-0030-EISH-EM46		11	30A	0.46mH	2%	8.6	188	120	115	90	156	8.5*20	φ6
OCL-0040-EISH-EM35		15	40A	0.35mH	2%	11.5	188	120	130	105	156	8.5*20	φ6
OCL-0050-EISH-EM28		18.5	50A	0.28mH	2%	13	188	120	130	105	176	8.5*20	φ6
OCL-0060-EISH-EM23		22	60A	0.23mH	2%	13.6	188	120	135	110	176	8.5*20	φ6
OCL-0080-EISH-EM17	C	30	80A	0.17mH	2%	17	220	162	122	96	230	10*18	φ11
OCL-0090-EISH-EM17		37	90A	0.17mH	2%	17	220	162	122	96	230	10*18	φ11
OCL-0120-EISH-EM11		45	120A	0.11mH	2%	19.5	220	162	132	106	230	10*18	φ11
OCL-0150-EISH-EM09		55	150A	0.09mH	2%	27	288	214	140	110	274	11*18	φ11
OCL-0200-EISH-EM07		75	200A	0.07mH	2%	28.5	288	214	140	110	274	11*18	φ11
OCL-0250-EISH-E55U		110	250A	0.055mH	2%	31.5	288	214	145	115	274	11*18	φ11
OCL-0290-EISH-E48U		132	290A	0.048mH	2%	43.5	320	243	155	123	305	12*20	φ12
OCL-0330-EISH-E42U		160	330A	0.042mH	2%	43.5	320	243	155	123	305	12*20	φ12
OCL-0390-EISH-E36U		185	390A	0.036mH	2%	47	320	243	165	133	305	12*20	φ12
OCL-0490-EISH-E28U	D	220	490A	0.028mH	2%	69.5	381	260	198	175	375	12*20	2-φ12
OCL-0530-EISH-E25U		240	530A	0.025mH	2%	69.5	381	260	198	175	375	12*20	2-φ12
OCL-0600-EISH-E23U		280	600A	0.023mH	2%	76.5	381	260	198	175	375	12*20	2-φ12
OCL-0660-EISH-E21U		300	660A	0.021mH	2%	76.5	395	275	198	175	355	12*20	2-φ12
OCL-0800-EISH-E17U		380	800A	0.017mH	2%	115	420	300	213	190	430	12*20	2-φ12
OCL-1000-EISH-E14U		450	1000A	0.014mH	2%	127	420	300	213	190	430	12*20	2-φ12
OCL-1200-EISH-E11U		550	1200A	0.011mH	2%	155	470	345	230	205	580	12*22	4-φ12
OCL-1600-EISH-E8U0		630	1600A	0.008mH	2%	170	470	345	230	205	580	12*22	4-φ12
