Features of Aluminum Enclosure Resistor
1. Aluminum enclosure resistor is superior to conventional ceramic resistor in terms of safety, weatherproof and shockproof qualities.
2. Additional radiator could be easily fixed to this aluminum enclosure resistor.
3. With elegant appearance, it is an ideal tool to be applied in power supply, inverter and servo system.

1. Parameters of Aluminum Enclosure Resistor (RSLG)
Rated Power Range: 60W~120W
Rated Voltage Range: 0.5KV-2KV
Resistance Range: 1R-10KR
Resistance Voltage: AC3KV 5S 50Hz
Insulated Resistance: DC1000V ≥100MΩ
Vibration: 1.5g
IP class: IP33-IP54
Overload Capacity: 10 times 5S
Rated Temperature Rise: 375℃
Temperature Drift: 40~400ppm/℃
Storing temperature:-40℃-50℃
Resistance Material: 0Cr25AL5/ Cr20Ni80
Standard: GB/T 5729

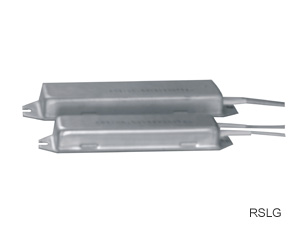

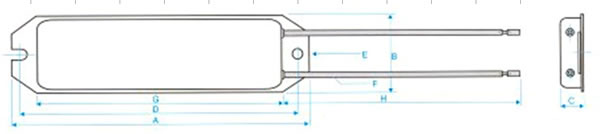

Aluminum Enclosure Resistor
Model Power(w) Picture Dimensions(mm) Weight (kg) Resistance
A B C D E F G H
RSLG 60 A 100 30 13 90 4.5 0.75 75 400 0.16 1Ω~10KΩ
RSLG 80 150 34 19 140 5 0.75 125 400 0.2 1Ω~10KΩ
RSLG 120 182 42 20 172 6 0.75 150 400 0.24 1Ω~10KΩ

2. Parameters of Aluminum Enclosure Resistor (RXLG)
Rated Power Range: 60W~2000W
Rated Voltage Range: 0.5KV-2KV
Resistance Range: 1R~10KR
Insulated Resistance: DC1000V ≥100MΩ
Resistance Voltage: AC3KV, 5S, 50Hz
IP class: IP33-IP544
Vibration: 1.5g
Rated Temperature Rise: 375℃
Overload capacity: 10 times 5S
Temperature Drift: 40~400ppm/℃
Resistance Material: 0Cr25AL5/ Cr20Ni80
Packing: paper box packing
Storage temperature: -40℃~50℃
Standard: GB/T 5729

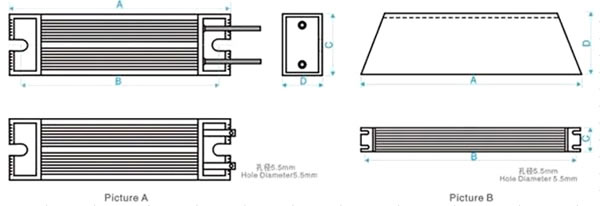

Aluminum Enclosure Resistor Top
Model Power (w) Picture Dimensions(mm) Wiring (mm2) Leadwire Length (mm) Terminal Weight (kg)
A B C D
RXLG 60 A 115 98 40 20 2.5 500 M4 0.16
RXLG 80 140 123 40 20 2.5 500 M4 0.2
RXLG 100 165 148 40 20 2.5 500 M4 0.24
RXLG 120 190 173 40 20 2.5 500 M4 0.28
RXLG 150 215 197 40 20 2.5 500 M4 0.318
RXLG 200 165 147 60 30 2.5 500 M4 0.463
RXLG 300 215 197 60 30 2.5 500 M4 0.619
RXLG 400 365 247 60 30 2.5 500 M4 0.8
RXLG 500 335 317 60 30 2.5 500 M4 1.03
RXLG 800 400 382 61 59 2.5 500 M4 2.21
RXLG 1000 B 400 384 50 107 2.5 500 M4 3.59
RXLG 1200 450 434 50 107 2.5 500 M4 3.98
RXLG 1500 485 470 50 107 2.5 500 M4 4.34
RXLG 2000 550 532 50 107 4 500 M4 4.89
Product Identification Code:
Product Type
RXLG Type
       Rated Power
     10W-2000W
Resistance Value(ohm)
(Ω) inedicates resistance
value in units of ohms
   Resistance Tolerance
   K=±10%
   J=±5%
Connection
M=Terminal
J=Lead
