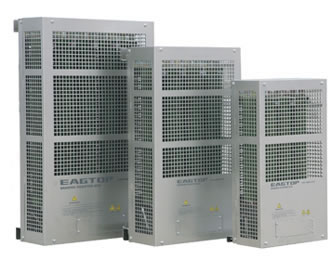

Braking Resistor Box

This product has been discontinued and removed from our shelves.

Generally, an electrical motor or other inductive load adopts dynamic braking to reach a halt. That is to say, it employs an additional dissipative cell to consume the kinetic energy and magnetic energy to realize fast brake. When the power supply is cut off, the inverter would send the remaining kinetic energy to DC bus. The voltage of DC bus will thus increase. When the voltage is up to a certain value, the braking resistor will come into use and consume the energy through resistance heating. The voltage on the DC bus will then be reduced to a normal value.

Features of Braking Resistor Box
1. Braking resistor box is assembled with Wirewound resistors.
2. It is equipped in an alclad shell with IP class up to IP20.
3. Hard-wired inner connection
4. Elegant and fire proof

Application of Braking Resistor Box
Eagtop braking resistor box is a resistor box that are assembled with Wirewound resistors and are applicable to circuits of inverter for braking equipment with large rated power and current, testing equipment, elevator and crane.

Parameters of Braking Resistor Box
Range of rated power: 2.4W-10KW
Range of voltage: 0.5KV-3KV
Range of resistance: 1R-1KR
Voltage resistance: AC2.5KV-5KV, 1min, 50Hz
Insulated resistance: DC 1000V ≥100MΩ
IP class: IP00-IP23
Vibration: 0.5g
Rated temperature rise: 375℃
Temperature drift: 40-400ppm/℃
Resistance material: 0Cr25AL5/Ni80Cr20
Storage Temperature: -40℃~50℃
Standard: GB/T 5729

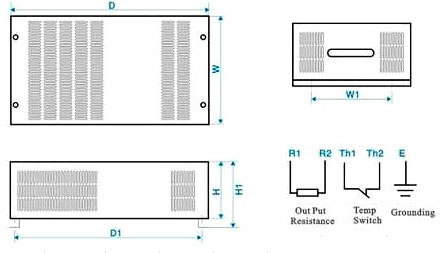

Model	Power (KW)	Dimensions (mm)						Terminal	Weight (kg)	Wiring (mm2)	Combination
		W	D	H	H1	D1	W1
BRU	1	250	500	125	150	480	180	M6	5.3	6	0.5KW*2
	1.5	250	500	125	150	480	180	M6	5.9	6	0.5KW*3
	2	280	500	145	170	480	210	M6	6.5	6	1.0KW*2
	3	280	500	145	170	480	210	M6	7.8	6	1.5KW*3
	4.5	340	600	145	170	580	291	M6	12	6	1.5KW*3
	6	340	600	145	170	580	291	M6	14	6	1.5KW*4
	8	410	685	145	170	642	340	M6	16.5	6	2.0KW*4
	10	410	685	145	170	642	340	M6	18.5	6	2.0KW*5
	16	410	685	145	340	642	340	M6	18.5	6	8KW*2
	20	410	685	145	340	642	340	M6	18.5	6	10KW*2

Product Identification Code:
