Crowbar Resistor
Crowbar Resistor
This product has been discontinued and removed from our shelves.

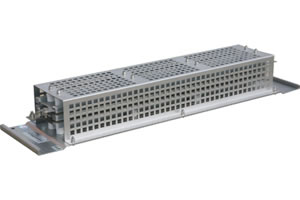

Features of Crowbar Resistor
Eagtop crowbar resistor comes with compact structure and small size. With large heat capacity, it could absorb a great deal of energy in a short time. It could be applied in wind power generation, voltage fall protection in power grid and more.
Parameters of Crowbar Resistor
Power Range: 500kW-2000kW
Voltage Range: 0.5KV—2KV
Resistance Range: ≤2R
Dielectric Strength: AC3KV/1min 50Hz
Insulated Resistor: DC 1000V ≥100MΩ
IP Protection: IP00
Vibration: 0.5g
Temperature Rise: 375℃
Temperature Coefficient: 40-400ppm/℃
Resistor Material: 0Cr25AL5/Ni80Cr20/SUS 304
Storage temperature: -40℃~50℃
