EMI Filter

EMI Filter
click here for table

EMI Filter

This product has been discontinued and removed from our shelves.

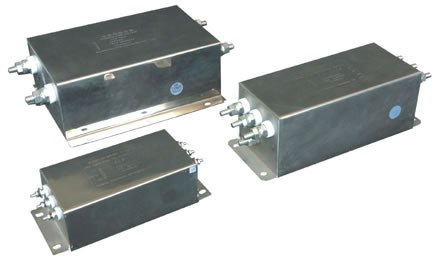

EMI filter is a kind of filter with good interference rejection capability. It could be applied to output terminal of inverters and frequency conversion equipment to reduce electromagnetism interference.

Parameters
Picture A

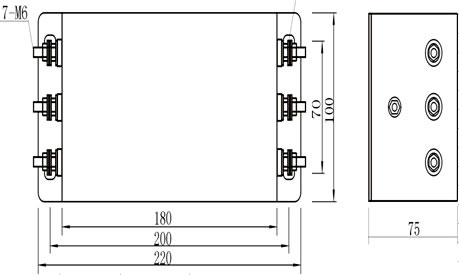

Picture B

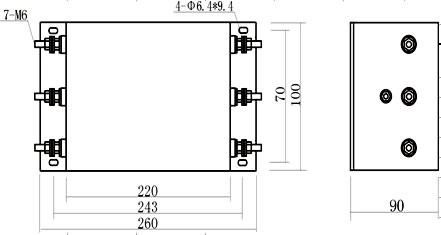

Picture C
Picture D
Picture E
Picture F

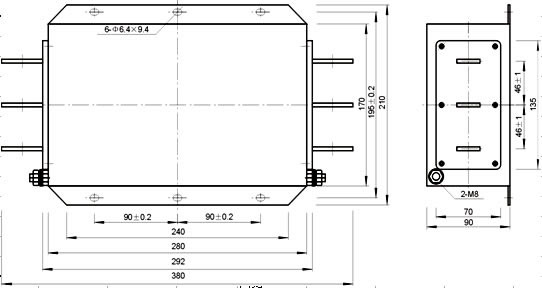

Picture G

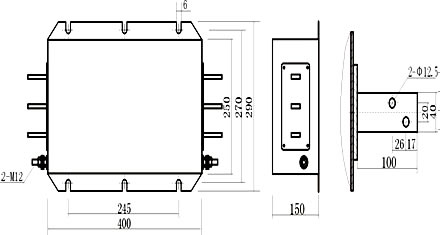

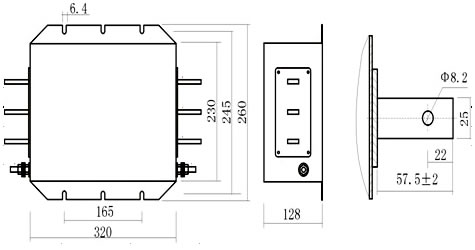

Picture H
Picture I
3 Phase Filter NFI
Model Electrical Current (A) Power (kw) Dimensions (mm) Installation Dimensions (mm) Figuration Weight(kg)
NFI-005 5 0.75-1.5 200*86*58 184*60 Picture A 0.6
NFI-010 10 2.2-4 1.25
NFI-020 20 5.5-7.5 260*100*90 243*70 Picture C 2.5
NFI-036 36 11-15 2.6
NFI-050 50 18.5-22 2.85
NFI-065 65 30 240*190*90 180*175 Picture D 4.6
NFI-080 80 37 320*200*90 260*185 Picture E 6.6
NFI-100 100 45 7
NFI-150 150 55-75 7.8
NFI-200 200 90 325*190*90 240*175 Picture F 5.15
NFI-250 250 110-132 380*210*90 180*196 Picture G 7.5
NFI-300 300 160 7.5
NFI-400 400 200 320*260*128 165*245 Picture H 14
NFI-600 600 215-250 14.5
NFI-900 900 315 400*290*150 245*270 Picture I
NFI-1200 1200 450
3 Phase Filter NFO
Type Electrical Current (A) Power (kw) Dimensions (mm) Installation Dimensions (mm) Figuration Weight(kg)
NFO-005 5 0.75-1.5 200*86*58 184*60 Picture A 0.75
NFO-010 10 2.2-4 1.25
NFO-020 20 5.5-7.5 1.3
NFO-036 36 11-15 220*100*75 200*70 Picture B 2.3
NFO-050 50 18.5-22 2.3
NFO-065 65 30 260*100*90 243*70 Picture C 2.73
NFO-080 80 37 3.1
NFO-100 100 45 3.34
NFO-150 150 55-75 240*190*90 180*175 Picture D 5
NFO-200 200 90 325*190*90 240*175 Picture F 4.75
NFO-250 250 110-132 380*210*90 180*196 Picture G 7.2
NFO-300 300 160 13.25
NFO-400 400 200 320*260*128 165*245 Picture H 17
NFO-600 600 215-250
NFO-900 900 315 400*290*150 245*270 Picture I
NFO-1200 1200 450
