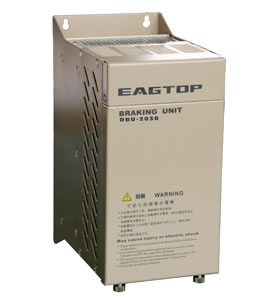

Braking Unit DBU (AC 200V~AC 300V)

Parameters of Braking Unit DBU (AC 200V~AC 300V)

Model-DBU			AC200V~AC300V
			2015	2022	2030
Input and output specifications	Peak current(A)		50	75	90
	Rated current(A)		15	25	30
	Wiring mm2		4-6	4-6	6-8
	Braking Activation Voltage (V)		380V±5V
	Maximum hysteresis		About 8V
	synchronous signal		Parallel operation is available; 2 or 3 units are recommended
Power supply	DC Bus Voltage Range		DC 243~400V		DC 460~800V
protection	Radiator overheat		Temperature switch: +85℃
	Break down output		RELAY contact 0.6A125VAC/2A30VDC(Tb,Tc)
Indication	Power ON		The red "power" LED will be on whenever the inverter DC Bus voltage is above ~35VDC
	Braking ON		The green "braking" LED will be on during braking unit conduction
Circumstance	Ambient temperature		-10℃~+40℃(No frost)
	Storing temperature		-10℃~+50℃
	Ambient humidity		90%RH(No dew)
	Vibration		10~20HZ: 1G, 20~50HZ: 0.2G
Mechanical construction			Wall mounting type: IP20
